Inline THT Bonding system

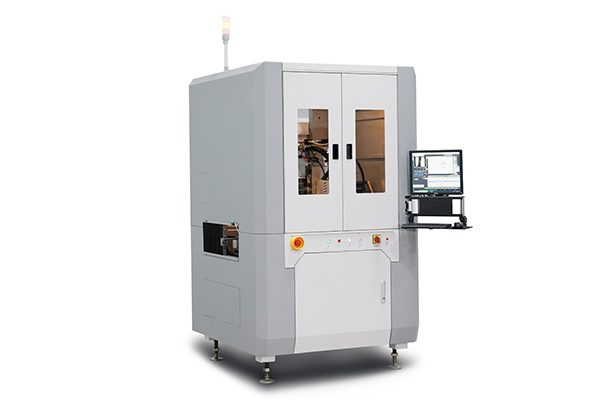

The MYSmart MYC50E, built on the MYC50 platform, is an industrial dispensing system specifically engineered for THT bonding applications requiring motorized tilt and rotation functionality. This advanced THT dispensing machine delivers precision performance for demanding THT glue dispensing processes.
Download
Precision THT Dispensing for Demanding Applications
The MYC50E THT dispensing machine delivers fast and stable operation, making it ideal for high-volume THT bonding applications.

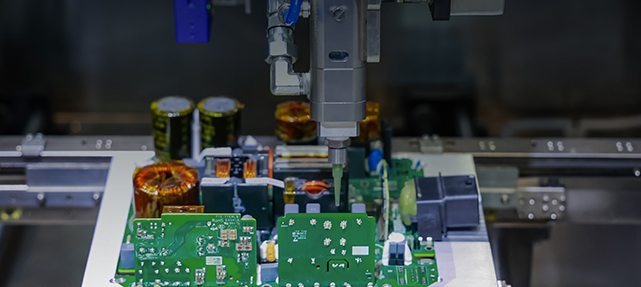

Key Features:
·Multi-axis control for complex THT glue dispensing paths
·External feeding system integration for continuous production
·Extended hood design with counterbalances for clean hose management
·High-pressure valve for robust material handling
·Micrometer-level adjustment for ultimate precision
·Needle verification module eliminates manual needle changes
·Electronic scale monitoring ensures consistent THT dispensing quality
Enhanced Component Protection

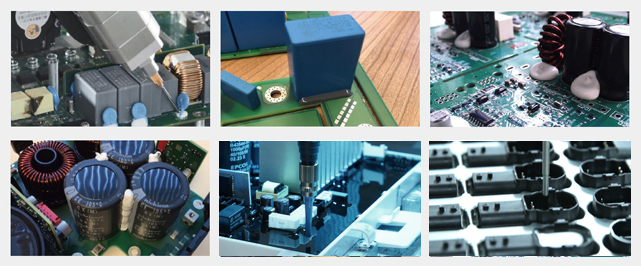

For superior PCB protection, the MYC50E THT bonding system precisely applies single or dual-component materials around THT components or between components and PCB boards.
Modular Design for Advanced THT Dispensing Solutions
The MYC50E THT dispensing machine features versatile process modules to efficiently handle complex THT bonding applications, ensuring optimal performance for your production needs.
Specifications
|
MOTION SYSTEM |
MYC50E |
|
Z-axis repeatability |
±25um@3σ |
|
X-Y repeatability |
±25um@3σ |
|
X-Y acceleration |
0.8 g peak |
|
X-Y velocity |
800 mm/s peak |
|
Z travel |
100mm |
|
Drive system |
AC servo motor with precise ball screw |
|
DISPENSING AREA |
|
|
V-300HP single valve and single lane(XxY) |
600x430/490x320(with tilt &rotate) |
|
V-9000H single valve and single lane(XxY) |
600x420/400x280(with tilt &rotate) |
|
BOARD HANDLING |
|
|
Max. top clearance |
100 mm |
|
Max. bottom clearance |
100 mm |
|
Load capacity |
5kg, 10kg(optional) |
|
FACILITIES REQUIREMENTS |
|
|
System footprint MYC50E（WxDxH） |
1,290x1,364x2,120mm (without light tower) |
|
VISION AND LIGHTING |
|
|
Camera resolution |
1.3M pixels |
|
Field of view |
14.0 x 11.0 mm |
|
Lighting |
Ring Light or Red/Green/White LEDs |
