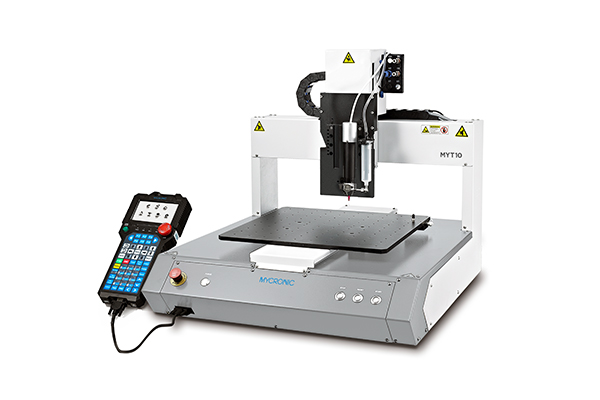

Axxon Mycronic MYT10 provides small-batch manufacturers small-batch manufacturers a selection of simple, robust tabletop dispensing robots with varying levels of capabilities for basic dispensing applications.

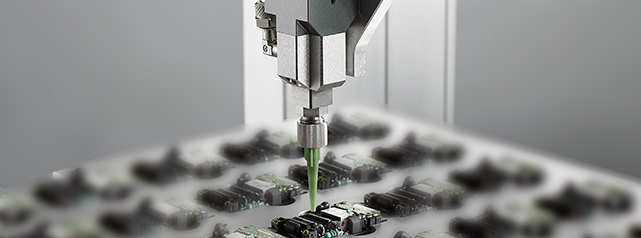

The semi-automated MYT10 series is well suited for testing and cost-efficient handling of standard electronic, industrial packages and heat-conductive dispensing. Automatic needle calibration and intelligent valve control help to ensure minimal setup and stoppage times for the most complex program routines.
Download
Product Features
• Adhesive dispensing • Testing • Industrial dispensing • Potting • Gasketing
• Three-axis movement • Vacuum cleaning • Handheld pendant controller
• Low fluid level sensor • Automatic needle calibration • Four direction electric tilt & pneumatic rotation
• Two direction electric tilt • Synchronous dual-valve • Z-axis heighten 50mm/100mm/200mm
• Spot UV • Small area LED UV lamp (40x40mm) • CE Certified table top enclosure with door (no sensor)
• CE Certified table top enclosure with light curtain
Specifications
|
Specification |
MYT10S |
MYT10M |
MYT10L |
|
Dimension (D x W x H) |
606x741x638mm |
706x841x638mm |
806x941x638mm |
|
Axis travel (X x Y x Z) |
300x300x100mm |
400x400x100mm |
500x500x100mm |
|
Dispense area (X x Y x Z) |
300x300x100mm |
400x400x100mm |
500×500×100mm |
|
Machine weight |
103kg |
125kg |
142 kg |
|
Gantry type |
H-Bridge |
||
|
System control |
Independent motion controller |
||
|
Drive system |
AC servo motor and precise ball screw |
||
|
Work load |
10 kg |
||
|
Z-axis work load |
5 kg |
||
|
Max speed |
X: 800 Y: 800 Z: 300 mm/s |
||
|
Acceleration |
0.8 |
||
|
Repeatability |
XYZ:±10um |
||
|
Programming |
Hand-held programme |
||
|
Memory capacity |
128 M |
||
|
Power |
AC 220 V, 600 W, 10 A， 50/60 Hz, |
||
|
I/O |
8 input / 8 output |
||
|
Certification |
CE |
||
