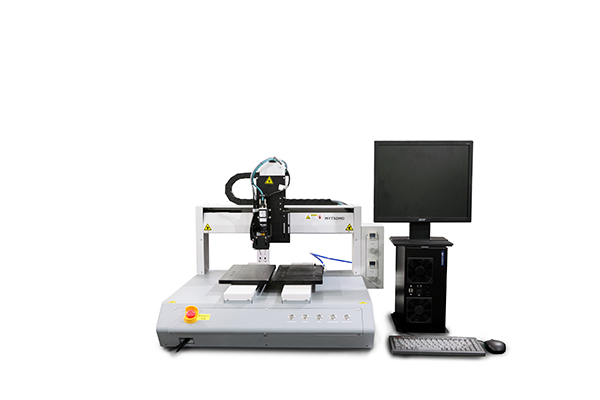

MYT50 series tabletop dispensing system

The Axxon Mycronic MYT50 tabletop dispensing is designed to tackle complex electronics assemblies. Possessing most of the capabilities of our inline dispensers in a tabletop format, ideal for NPI builds and batch level volume dispensing processes.

The MYT50 is a computer controller desktop robot that is highly capable and scalable to meet current and future requirements. From advanced prototyping to batch production, the MYT50 is designed with flexibility and configurability in mind.


//这里有一个验证会员是否登录的判断 Download

Product Features

FULL RANGE DISPENSER ON A TABLETOP

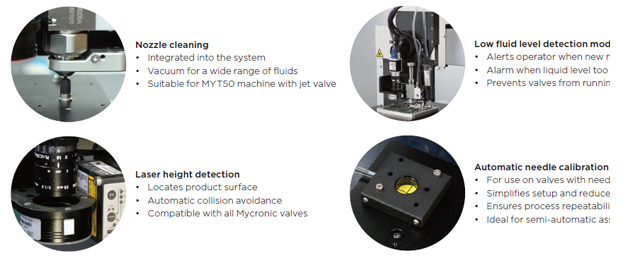

The MYT50 comes with advanced capabilities, including automated calibration and visual inspection, barcode and fiducial scanning, and z-axis laser height compensation, bringing easy-to-use in-line functionality into a space saving tabletop format.

COMMON APPLICATION

• Fingerprint module dispensing      • FPC dispensing      • VCM dispensing      • Underfill

• Encapsulation and coating      • Edge bonding and sealing      • Corner bonding

• Solder paste dispensing

STANDARD SETUP

• Three-axis movement       • CCD for fiducials and programming

• Non-contact laser height sensor       • Intelligent valve control

• CCD barcode reader for program loading       • Nozzle cleaning

• IPC

CONFIGURABLE OPTIONS

• Low liquid level alarm      • Bent needle calibration


Specifications

Specification

MYT50S

MYT50M

MYT50L

MYT50MD

MYT50LD

Dimension (D x W x H)

606x741x638mm

706x841x638mm

806x941x638mm

706x841x638mm

806x941x638mm

 Axis travel (X x Y x Z/XxY1xY2xZ)

300x300x100mm

400x400x100mm

500x500x100mm

400x400x400x100mm

500x500x500x100mm

Dispense area (X x Y x Z)

260x260x100mm

360x360x100mm

460x460x100mm

360x360x100mm

460x460x100mm

Machine weight

104 kg

126 kg

143 kg

136kg

114kg

Gantry type

H-Bridge

H-Bridge

System control

Windows 10 IPC,

Axxon/Mycronic software

Windows 10 IPC,

Axxon/Mycronic software

 Drive system

AC servo motor and precise ball screw

AC servo motor and precise ball screw

Work load

10 kg

10 kg

Z-axis work load

5 kg

5 kg

Max speed

X: 800 Y: 800 Z: 300 mm/s

X: 800 Y1: 800 Y2:800 Z: 300 mm/s

Acceleration

0.8 g

0.8 g

Repeatability

± 10um

± 10  um

Memory capacity

256G

256G

Power

AC 220V, 50/60 Hz, 650 W, 10 A

AC 220V, 50 Hz, 850 W, 10 A

Visual system

Industrial CCD

Industrial CCD

Camera Resolution

0.01 x 0.01 mm(adjustable)

0.01 x 0.01 mm(adjustable)

Field of View

14 x 14 mm(adjustable)

14 x 14 mm(adjustable)

Light source

LED

LED

Optional function

Low fluid level detection module,

automatic needle calibration module

Low fluid level detection module,

automatic needle calibration module

Certification

CE

CE
