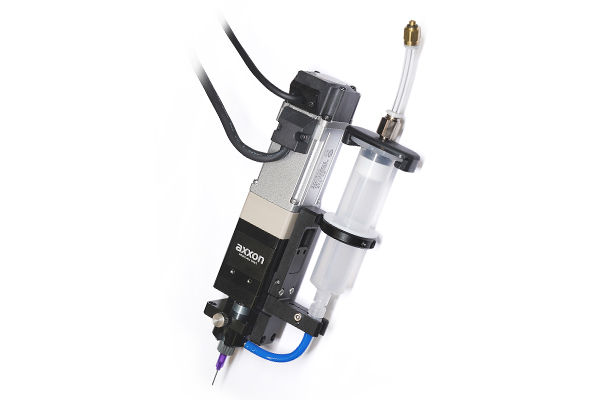

Axxon Mycronic's V-8000S auger valve is designed for medium to high viscosity fluids for applications requiring higher flowrates or highly filled materials.
The V8000 utilizes configurable cartridge assemblies to be compatible with a wide range of fluids and shot sizes.
The servo motor drive allows for precision control of forward and reverse (suck back) motion of the auger.
Download
Product Features
- High level of repeatability, high level of repeatability
- Modular structure, easy to use and maintain
- Wide range of fluids, adjustable flow rate
- Different configurations for fluid and process requirements
- Equipped with syringe low liquid level detection
- Adjustable forward and reverse speed and time. Consistent start and stops.

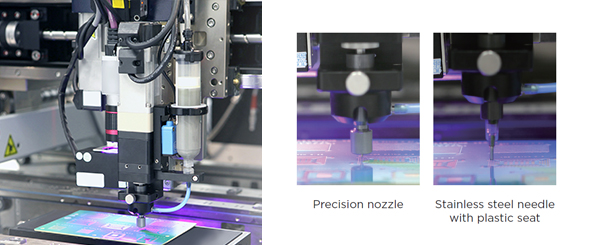

• Optical communication industry
• BGA component
• LCD, LED component assembly
• PCB component soldering
• Camera, voice coil and sensor module packaging
• Solder paste • TIM • Grease • Silver paste
Specifications
|
Specification |
V-8000S auger valve |
|
Viscosity range |
5,000cps~100,000cps |
|
Max.rotation speed |
2000r/min |
|
Min.dot diameter |
0.25mm |
|
Valve body structure |
Auger type |
|
Driving parts |
Stainless Steel |
|
Wetted Parts |
Auger Carbide Cartridge Carbide |
|
Fluid input |
Luer |
|
Mounting Interface |
Dovetail groove fixed seat |
|
Dimensions |
220.5×89×51mm |
|
Weight |
900g |
The V-8000S auger valve can be integrated with any precision dispensing system.
