Benchtop coating platform

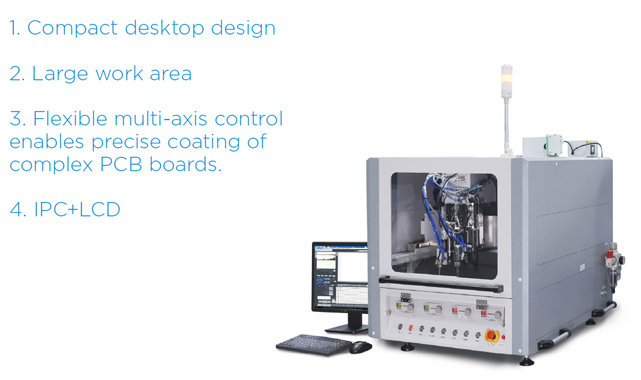

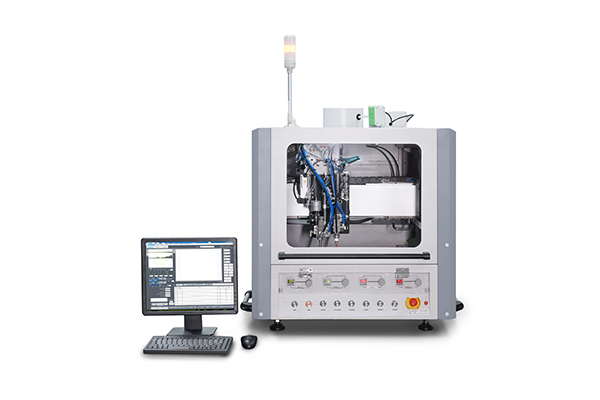

MYC10 is a flexible three axis robot with an optional 4-position rotation and tilt unit. This unit is ideal for virtually any benchtop of laboratory selective coating application. MYC10 features a robust motion platform using servo motors and precision ball screw drives.
Download
Product Features

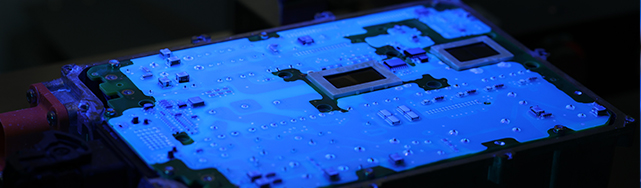

• Consumer electronics • Industrial electronics • Household appliances • Automotive control panels
• Military electronics • Computer control panels • Agricultural equipment control panels
• Battery protection boards • LED lighting • Outdoor led displays • Converter circuit boards
• Security control panels • Motor control boards • Power management devices
Specifications
|
MOTION SYSTEM |
|
|
X-/Y-AXIS |
Z-AXIS |
|
X, Y speed: max 500mm/s |
Z axis speed: max. 300mm/s |
|
X, Y acceleration: max. (0.5 g peak with s-curves) |
Z axis acceleration: max. (0.3 g peak with s-curves) |
|
X, Y repeatability: ± 25um@3σ |
Z axis repeatability: ± 25um@3σ |
|
X, Y drive mode: servo motor, ball screw |
Z axis drive mode: servo motor, ball screw |
|
FOUR DIRECTION TILTING MODULE |
|
|
Rotation angle: 0 degree, 90 degrees |
Tilt angle: 0 degree, ± 35 degrees(Manually adjust other degrees) |
|
Repeatability: ± 0.1 degree |
Repeatability: ± 0.1 degree |
|
Drive mode: cylinder |
Drive mode: cylinder |
|
DISPENSING AREA |
|
|
Single valve max: 320x400mm |
|
|
Asynchronous dual valve max: 280x400mm |
|
|
Asynchronous dual valve with four direction tilting module max: 250x350mm |
|
|
Asynchronous tri-valve max: 205 x 370 mm |
|
|
Max clearance PCB: top 90mm, bottom 90mm |
