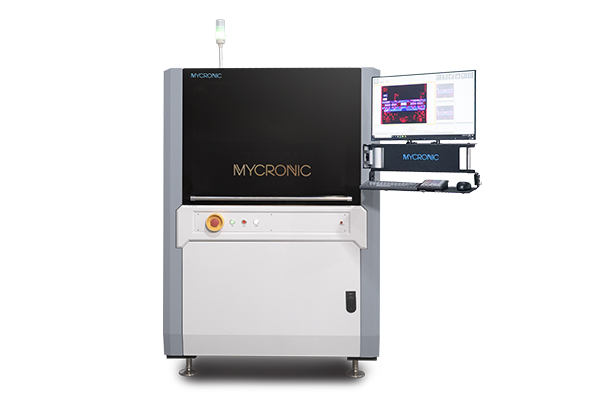

Conformal coating automated optical inspection system
The system features advanced scanning technology with multi-color LED illumination resulting in parallax-free images. The optics, along with an impressive scanning distance of up to 100mm results in shadow free inspection of products with tall geometries. The i70X can 100% inspect next to a connector no matter if it is at the edge of a product or in the center of a PCB. Complete, high resolution scans with the largest model take less than 25s. Defects such as cracks, voids and contamination can easily be detected. With the optional thickness measurement software a color map can be displayed, offering a quick check that coating is within specification.
Download
Product Features
- High-resolution color scanner: real 24-bit color, 20,400 x 14,040 Pixels per small scan
- Multi-color LED lighting
- Achromatic lens for parallax free display
Easy programming: Fast and intuitive software Simple user interface: Straight forward programming wizard and easy to
understand interface
Fast scanning speed: Time for a full scan and processing
is < 25s, and results are immediately available
Supports MES traceability: Barcodes can be read on each PCB with optional 2D barcode option. The results and detail
can be connected to your MES for product traceability
• Automotive • Consumer • Military • Medical

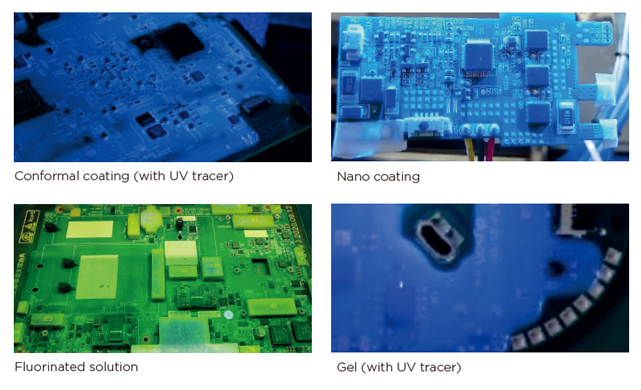

Process defect detection: defects such as cracks, voids, overspray, contamination,
splashes, orange peel, bubbles and thickness measurement.
- Detection time: 6-25s
- Resolution: 600-1200dpi
- Multi-light source system: red light, white light, UV light
Specifications
|
BASIC PARAMETERS |
i70XS |
i70XS-D |
i70XL |
i70XL-D |
|
Power supply |
AC 220V,2.2kW |
|||
|
Air pressure requirement |
0.4-0.8MPA |
|||
|
Exhaust requirements |
Exhaust port diameter 200mm |
|||
|
Dimension |
1,150x1,350x16,30mm |
1,150x1,350x1,630mm |
1,420x1,550x1,780mm |
1,420x1,550x1,780mm |
|
Weight |
600kg |
700kg |
750kg |
800kg |
|
System certification |
CE |
|||
|
IPC parameter |
i7, 32GB memory, 6T hard disk,Win10, 24 inch display |
|||
|
Communication |
SMEMA |
|||
|
PLATFORM PARAMETERS |
||||
|
Conveyor payload |
5kg (10kg optional) |
|||
|
Conveyor height |
900±30mm |
|||
|
Conveyor speed |
2-15m/min |
|||
|
Conveyor direction |
L-R(Standard); R-L(Optional) |
|||
|
Conveyor width range |
50-500mm |
|||
|
Conveyor width adjust |
Automatic |
|||
|
Conveyor transport type |
Stainless steel chain |
|||
|
Top clearance |
50mm |
50mm |
100mm |
100mm |
|
Bottom clearance |
100mm |
50mm |
100mm |
100mm |
|
Board thickness |
≥ 1mm (Rigid product) |
|||
|
Board edge |
5mm |
|||
|
Return conveyor height |
400±30mm |
|||
|
AOI PARAMETERS |
||||
|
Inspection type |
Top |
Top Bottom |
Top |
Top Bottom |
|
Max inspection area(XxY) |
400x300mm |
400x300mm |
530x420mm |
530x420mm |
|
Resolution |
600-1200dpi, 42um-21um |
|||
|
Depth of field |
9mm |
|||
|
Display size |
24 inches |
|||
|
Inspection light source type |
Red light, white light, UV light |
|||
