Compact and space-saving online conformal coating system
The MYSmart series inline conformal coating platforms combine high-accuracy edge definition with advanced feedback systems. A wide range of process parameters can be monitored enabling high quality output.
Download
Product Features

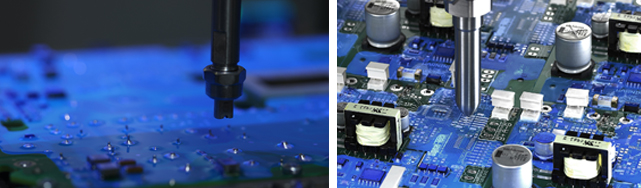

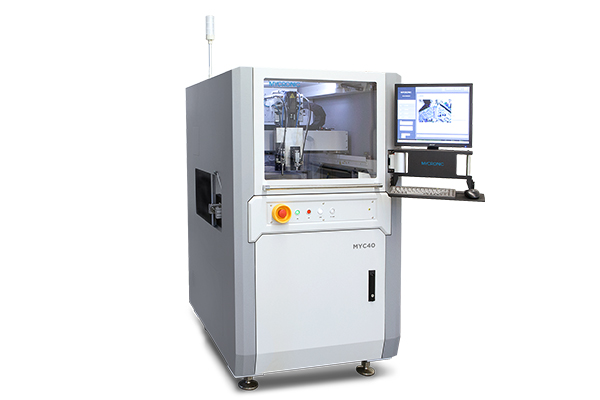

Options such as fan width control, flow monitoring, heated valves, heated circulation systems and barcode readers are a few examples of process control enhancements that are possible. Wherever ruggedized electronics are required, the MYC40 helps to prevent material waste while ensuring highly controlled layer thickness over the complete coated area.
• Consumer electronics • Industrial electronics • Household appliances • Automotive control panels
• Military electronics • Computer control panels • Agricultural equipment control panels
• Battery protection boards • Led lighting • Outdoor led displays • Converter circuit boards
• Security control panels • Motor control boards • Power management devices
Specifications
|
MOTION SYSTEM |
|
|
X,Y AXIS |
Z AXIS |
|
X, Y speed: max 800 mm/s |
Z axis speed: max. 300 mm/s |
|
X, Y acceleration: max. (0.8 g peak with s-curves) |
Z axis acceleration: max. (0.3 g peak with s-curves) |
|
X, Y repeatability: ± 25 um, 3σ |
Z axis repeatability: ± 25 um, 3σ |
|
X, Y drive mode: servo motor, ball screw |
Z axis drive mode: servo motor, ball screw |
|

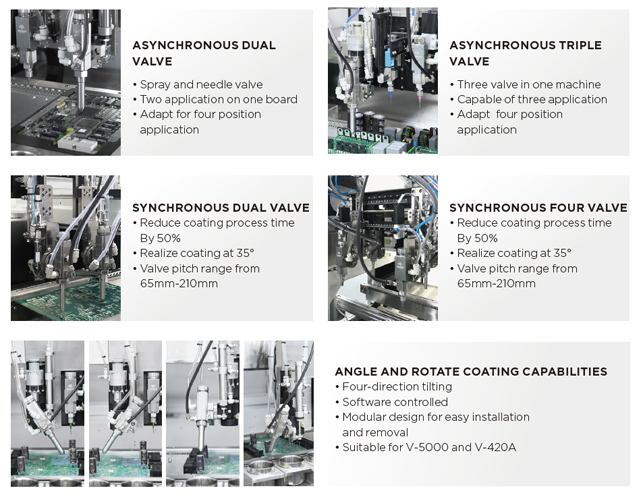

FOUR DIRECTION TILTING MODULE |
|
|
Rotation angle: 0 degree, 90 degrees |
Tilt angle: 0 degree, ± 35 degrees(Manually adjust other degrees) |
|
Repeatability: ± 0.1 degree |
Repeatability: ± 0.1 degree |
|
Drive mode: cylinder |
Drive mode: cylinder |
|
DISPENSING AREA |
|
|
Single valve max: 450x450 mm |
|
|
Asynchronous dual valve max : 390x440 mm |
|
|
Asynchronous dual valve four direction tilting module max: 330x380 mm |
|
|
Asynchronous tri-valve max: 240x400 mm |
|
|
Max clearance PCB: top 150mm, bottom 90mm |
