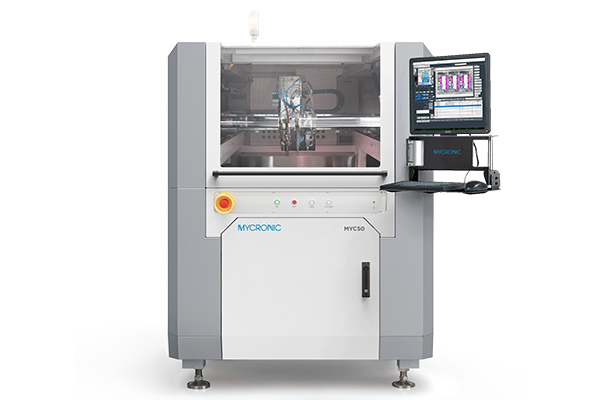

High-productivity, high-precision conformal coating system
The MYC50 is ready to perform automated complex coating processes, monitor process parameters and can switch coating patterns without interruption. Our Coating platform gives you powerful, software-driven process flows that ensure years of productivity for even the most complex PCBs.
Download
Product Features
As electronics continually become embedded into an endless variety of products, the need for high-precision conformal coating is greater than ever before. The MYSmart MYC50 inline conformal coating platform combines high-accuracy edge definition with advanced feedback systems. A wide range of process parameters can be monitored, enabling high-quality output. There are many options for process control optimizations: fan width control, flow monitoring, heated fluid systems and bar code readers. Wherever ruggedized electronics are required, the MYC50 minimizes material waste while ensuring a controlled layer thickness over the complete coated area.

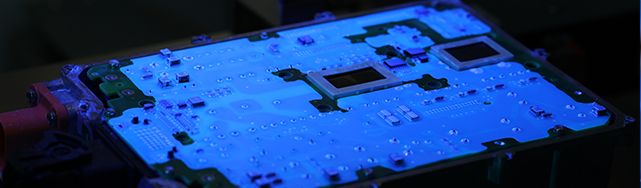

• Consumer electronics • Industrial electronics • Household appliances • Automotive control panels
• Military electronics • Computer control panels • Agricultural equipment control panels
• Battery protection boards • LED lighting • Outdoor led displays • Converter circuit boards
• Security control panels • Motor control boards • Power management devices
Specifications
|
MOTION SYSTEM |
|
|
X-/Y-AXIS |
Z-AXIS |
|
Speed: max 800 mm/s |
Speed: max 300 mm/s |
|
Acceleration: max (0.8 g peak with s-curves) |
Acceleration: max (0.3 g peak with s-curves) |
|
Repeatability: ±25 um, 3σ |
Repeatability: ±25 um, 3σ |
|
Drive mode: servo motor, ball screw |
Drive mode: servo motor, ball screw |
-
|
FOUR DIRECTION TILTING MODULE |
|
|
Rotation angle: 0 degree, 90 degrees |
Tilt angle: 0 degree, ± 35 degrees(Manually adjust other degrees) |
|
Repeatability: ± 0.1 degree |
Repeatability: ± 0.1 degree |
|
Drive mode: cylinder |
Drive mode: cylinder |
-
|
DISPENSING AREA |
|
|
ONE WORK STATION(XxY) |
TWO WORK STATIONS(XxY) |
|
Single valve max: 650 x 450mm |
Single valve max: 450 x 430mm |
|
Asynchronous dual valve max: 550 x 410mm |
Asynchronous dual valve max: 450 x 410 mm |
|
Asynchronous dual valve with four direction tilting module max: 540 x 360mm |
Asynchronous dual valve with four direction tilting module max: 450 x 360mm |
|
Asynchronous tri-valve max: 475 x 380 mm |
Asynchronous tri-valve max: 450 x 380mm |
|
Max clearance PCB: top 100mm, bottom 100mm |
Max clearance PCB: top 100mm, bottom 100mm |
