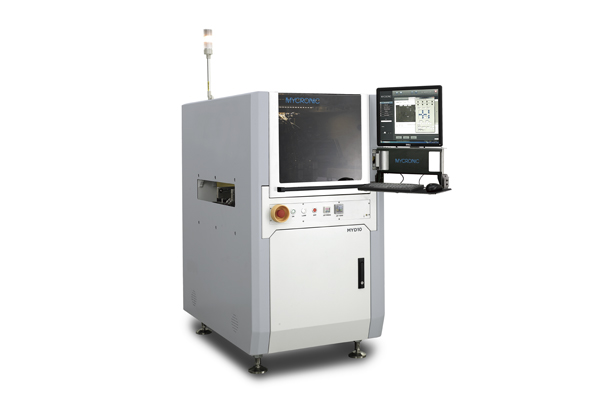

Compact design inline precision dispensing system
The MYSmart series offers a wide range of in-line dispense solutions together with a comprehensive portfolio of valve technologies. The MYSmart in-line dispensing solutions, proven in the most advanced production environments, make it possible to handle a vast array of current and emerging products, assembly fluids and package types. Key applications are in consumer electronics such as Hot melt, Underfill, Pin encapsulation, Edge/corner bonding, Surface mount package, Package on package, Dam and fill, SMA, FPC component and Reinforcement materials etc.
Download
Product Features
MYD series can handle different substrate sizes and compositions to meet specific process requirements.
Numerous applications can be achieved with optional features such as tilt and rotate, contact
and non-contact heating and dual head configurations.
Smaller machine dimensions, high-quality build and streamlined mechanical design allow the system to
run for longer periods of time with less maintenance and lower downtimes. Our Piezo Jetting technology
has been designed with a reduced number of wear parts, further reducing the cost of ownership making
the MYD series a cost-effective dispensing solution.
Precise temperature controls, on-the-fly fiducial search, robust vision algorithms, low motion Z axis
and non-contact dispensing are some feautures to increase productivity.
• Hot melt • Underfill • Pin encapsulation • Edge/corner bonding • Surface mount package
• Package on package • Dam and fill • SMA • FPC component • Reinforcement materials
Specifications
|
Specification |
MYD10X |
|
Power supply |
AC 200~240V,2.5kW,11A,50/60Hz |
|
Air supply |
90psi(6bar) |
|
Dimension |
770x1200x1450mm(WxDxH) |
|
Weight |
650kg |
|
Standard compliance |
CE |
|
Dispense area |
|
|
Max dispensing area (single lane/dual lane) |
350x475mm/350x210mm(WxD） |
|
Synchronized dual valve – automatic adjustment (single lane/dual lane) |
320x420mm/320x172mm(WxD） |
|
Asynchronized dual valve (single lane/dual lane) |
290x450mm/290x197mm(WxD） |
|
Tilt & rotation (single lane/dual lane) |
270x420mm/270x182mm(WxD） |
