Precision Dispensing for Demanding Applications
The axxon Mycronic APJ1500 piezo jetting valve delivers ultra-precise, non-contact dispensing for a wide range of materials, ensuring high consistency and efficiency in your production process.
Ideal for:
SMT, FPC, LED, PCB, and semiconductor manufacturing
Energy, life sciences, optics, MEMS, and RFID applications
Key Advantages:
High-speed piezo jetting for rapid, accurate material deposition
Non-contact processing prevents component damage
Reliable performance for critical electronics production
Download

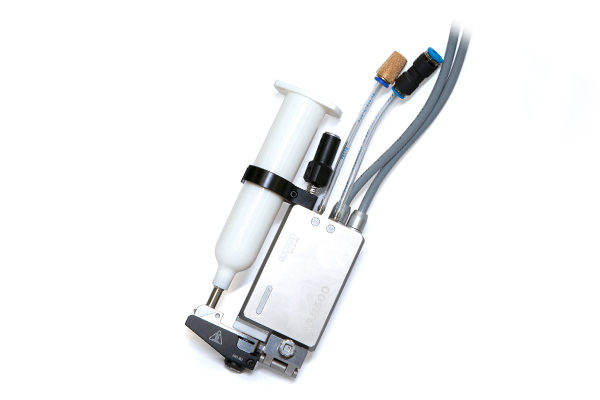

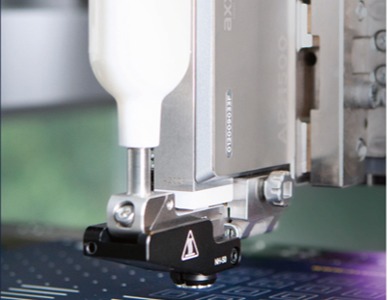

APJ1500 Piezo Jetting Valve | Unmatched Speed & Precision
The axxon Mycronic APJ1500 piezoelectric jetting valve redefines dispensing performance with industry-leading capabilities:

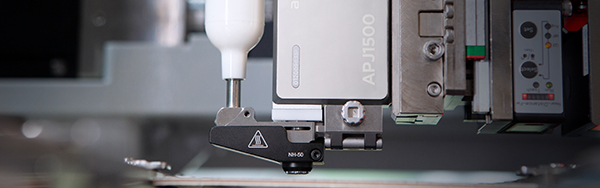

Key Features:
·Blazing speed: 1,000 dots/sec - 3-7X faster than conventional methods (no Z-axis movement required)
·Micro-precision: Consistent 0.2mm minimum dot size for flawless results
·Ultra-flexible: 1nl minimum droplets + non-contact operation protects delicate components
·Maintenance-friendly: Quick-release design cuts downtime; wear-resistant materials deliver 20X longer lifespan
·Engineered reliability: Patented short-stroke design eliminates bubbles/splashes with integrated temperature control
The ultimate solution for semiconductor, SMT, and precision electronics manufacturing.

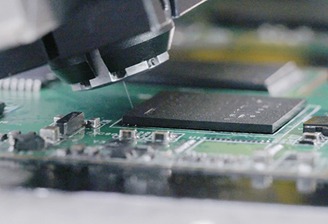

· Underfill
· Dam and Fill
· Hot Melt
· Pin Encapsulation
· Precision Coating
· Corner / Edge Bonding
Wide Fluid Compatibility
The piezo jetting valve handles an extensive viscosity range up to 200,000cps, making it ideal for diverse semiconductor and precision dispensing applications.
D-180H Controller
·The overall controller design is compact and smart, saves space, and minimizes cost of ownership for piezo valve systems
·Enhanced design for quick and easy maintenance of piezoelectric jetting valves with minimum downtime
·The valve body is designed with a cooling module for stable, high-speed piezo jetting performance
·D-180H controller precisely controls all aspects of piezoelectric valve operation
The APJ1500 piezo jetting valve and its controller come integrated in the MYD platform for seamless coupling and process control. All parameters can be adjusted for optimal valve for semiconductor applications.
Specifications
|
Technical Data |
APJ1500 |
|
Maximum frequency |
0~1000Hz |
|
Maximum fluid pressure |
0~0.3MPa |
|
Minimum dot diameter |
0.2mm (for specific epoxies, smaller dot sizes can be achieved, down to 0.14 mm) |
|
Applicable fluid viscosity |
1~200,000cps |
|
Dimension |
117x25.4x76mm |
|
Weight |
440 g |
|
Maximum nozzle heating temperature |
200℃ |
The APJ1500 piezoelectric jetting valve is designed for seamless integration with any precision dispensing system, making it an ideal piezo valve solution for semiconductor and high-precision applications requiring high-speed piezo jetting performance.
