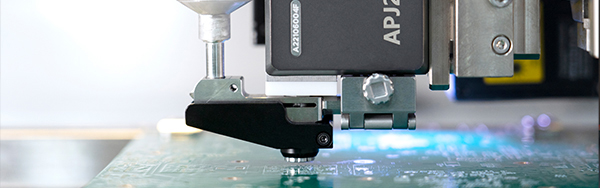

The Axxon Mycronic APJ2000 piezo jetting valve offers the capability to precisely dispense materials of high viscosity and that require high contact forces to be able to jet.
The APJ2000 piezoelectric valve is a high-performance injection valve developed by Axxon for higher viscosity fluids replacing the need for pneumatic jets. These piezo jets can be precisely controlled and apply 2X the force of standard piezo-jets enabling precision piezo jetting to materials and processes that before could not be done.
Download
Product Features
- High jetting force: For an enhanced jetting performance with a wider range of fluids (Up to double the standard version)
- Piezoelectric principle + adjustable frequency: Up to 550 Hz, minimum dot diameter 0.2mm
- Easy maintenance: Modular design for fast maintenance and reduced downtime
- Optimal choice for medium and high viscosity fluids
- Patented design
- Silicone - Silver paste - Precision Coating - Surface mount - SMA
- Hot melt and other higher viscosity fluids - Corner Bonding/Edge Bonding
wide viscosity range up to 200,000cps

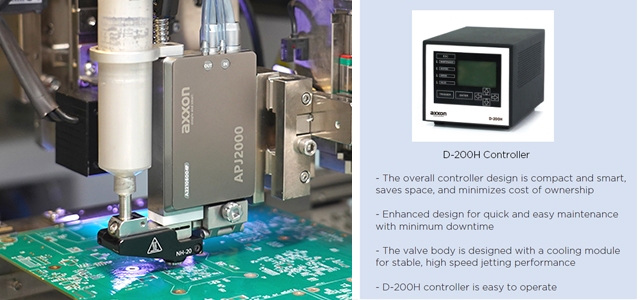

Note:Can be integrated with any precision dispensing systemtTogether with D-200H controller
Specifications
|
Technical Data |
APJ2000 |
|
Maximum frequency |
0~550Hz |
|
Maximum fluid pressure |
0~0.3MPa |
|
Minimum dot diameter |
0.2mm |
|
Applicable fluid viscosity |
1~200,000cps |
|
Dimension |
117x25.4x76 mm |
|
Weight |
570g |
|
Maximum nozzle heating temperature |
200℃ |
The APJ2000 piezoelectric valve can be integrated with any precision dispensing system.
