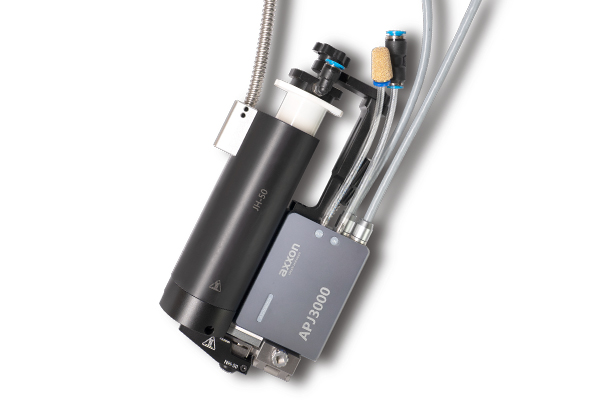

The Axxon Mycronic APJ3000 piezo jetting valve offers the capability to jet hot melt and similar materials that require higher temperatures to reach jettable viscosities.
The APJ3000 piezoelectric valve is a high-performance injection valve developed by Axxon for materials that require a high temperature setpoint to either melt or reach a viscosity where it can be jetted. Fully heat controlled fluid paths enable difficult applciations such as precise hot melt jetting.
Download
Product Features
- High consistency: The unique structural design maintains a constant temperature for the adhesive and ensures stable spraying.
- High spraying frequency: Up to 1000 dots per second.
- Limit dot diameter: 0.26mm per dot, meeting the requirements for high precision dispensing.
- Line thickness to width ratio: More than 60%, achieved with a new nozzle structure design and precise output force control.
- Easy maintenance: Modular design allows for quick maintenance and reduced downtime.
- Patented design

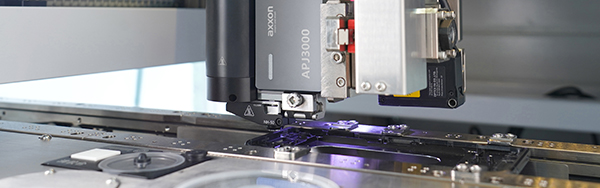

Bonding and sealing (hot melt)
Hot melt glue
Specifications
|
Technical Data |
APJ3000 |
|
Maximum frequency |
0~1000Hz |
|
Maximum fluid pressure |
0.1~0.5MPa |
|
Minimum dot diameter |
0.26mm |
|
Applicable fluid viscosity |
1~200,000cps |
|
Dimension |
110x80x25mm |
|
Weight |
450g |
|
Maximum nozzle heating temperature |
200℃ |
The APJ3000 piezoelectric valve can be integrated with any precision dispensing system.
